Key/Value

Key/Values are just JSON objects, where the full object is accessed by the Root Key. Each layer of the JSON structure can then be accessed, and edited, with HTTP path parameters as keys/indices to the JSON.

Manage Root Keys

Create a New Key

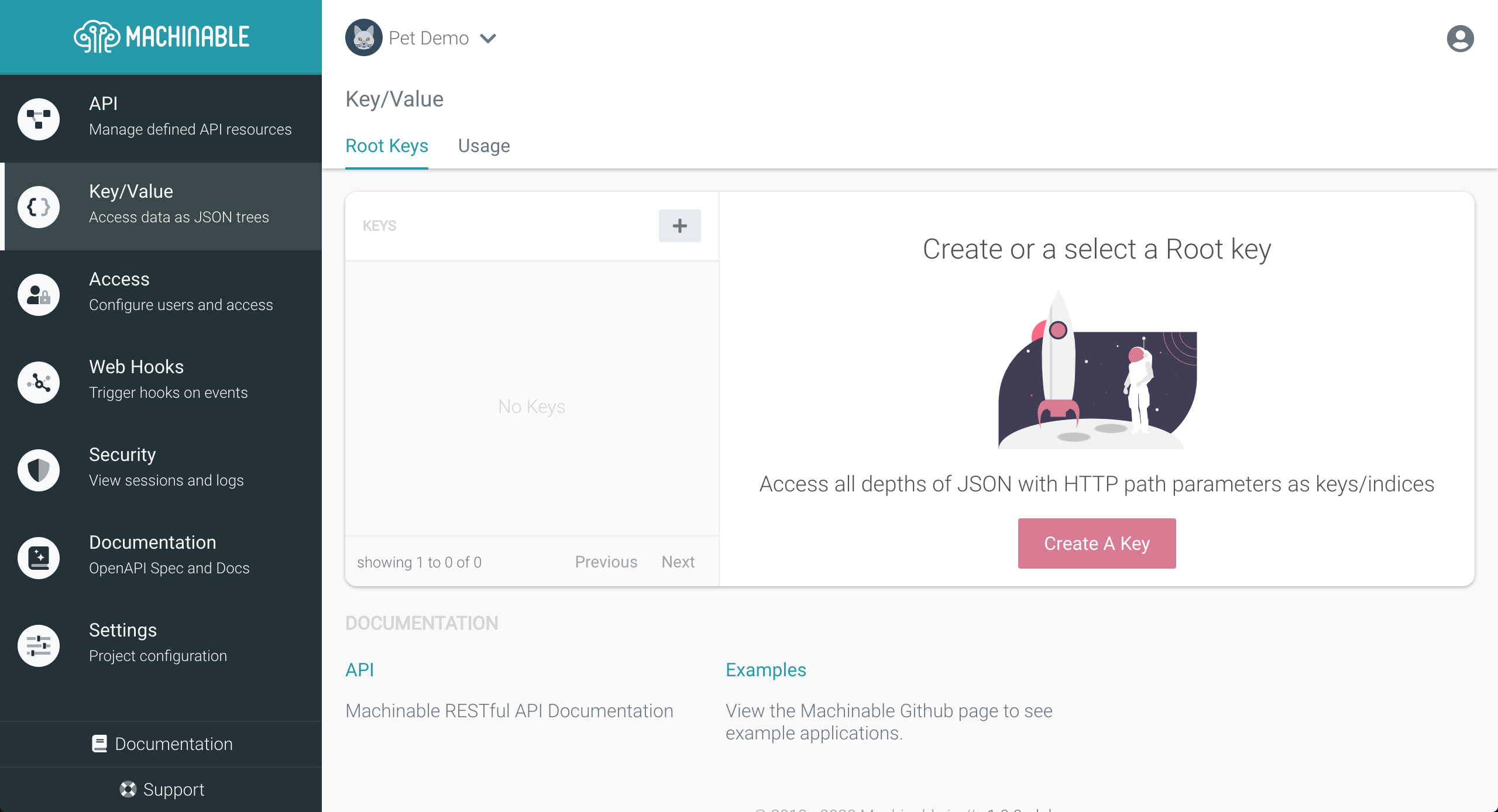

To get started with Machinable Key/Values, navigate to your Project's Key/Value page. From this page you can create, edit, and delete you project's Root Key's as well as their contents.

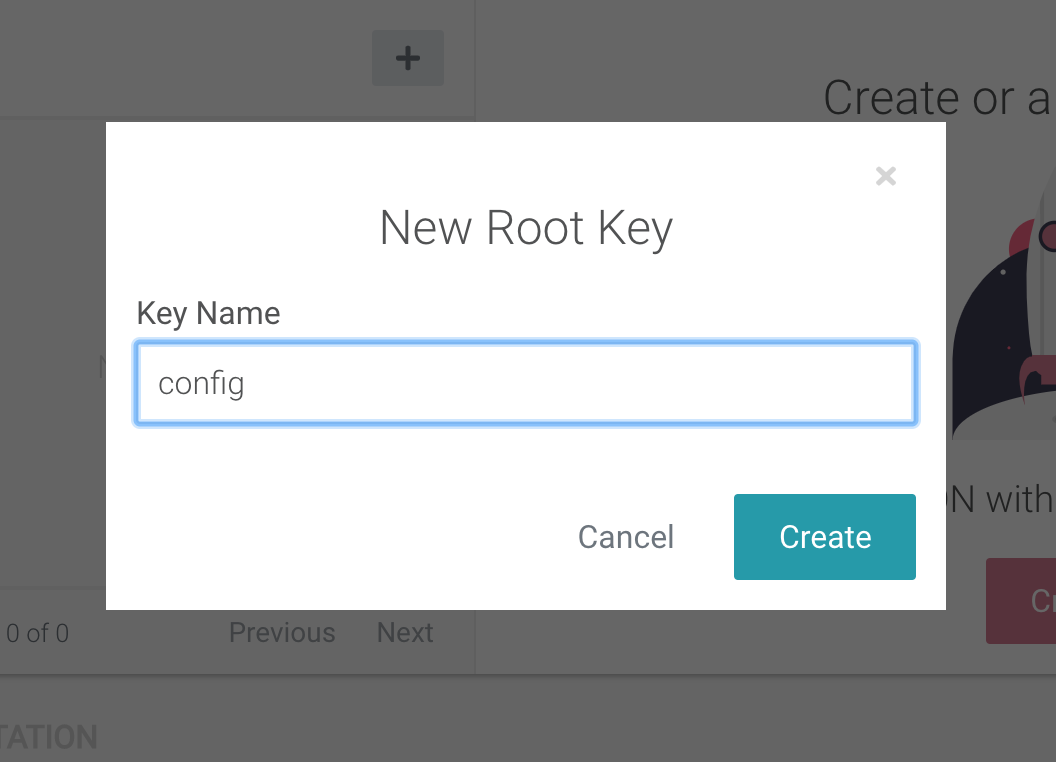

From this page select Create A Key from the empty state area. We will create a sample configuration JSON object with the Root Key of config.

Retrieve/Edit JSON

Once you've created your Root Key, you can use the JSON Editor to change it's contents. See below as we add some configuration values to the JSON.

The JSON value of the root key can then be accessed via HTTP Request:

$ curl -s https://pet-demo.machinable.io/json/config/ | jq "."
{
  "database": {
    "address": ""
  },
  "whitelist": [
    "google.com",
    "machinable.io",
    "reddit.com"
  ]
}

Access JSON structure with HTTP path parameters as keys/indices to the JSON:

$ curl -s https://pet-demo.machinable.io/json/config/whitelist/1 | jq "."
"machinable.io"

Add or edit keys with POST and PUT verbs:

$ curl -s -X POST -d '"github.com"' https://pet-demo.machinable.io/json/config/whitelist/0 | jq "."
"github.com"
$ curl -s https://pet-demo.machinable.io/json/config/whitelist | jq "."
[
  "github.com",
  "google.com",
  "machinable.io",
  "reddit.com"
]

Access

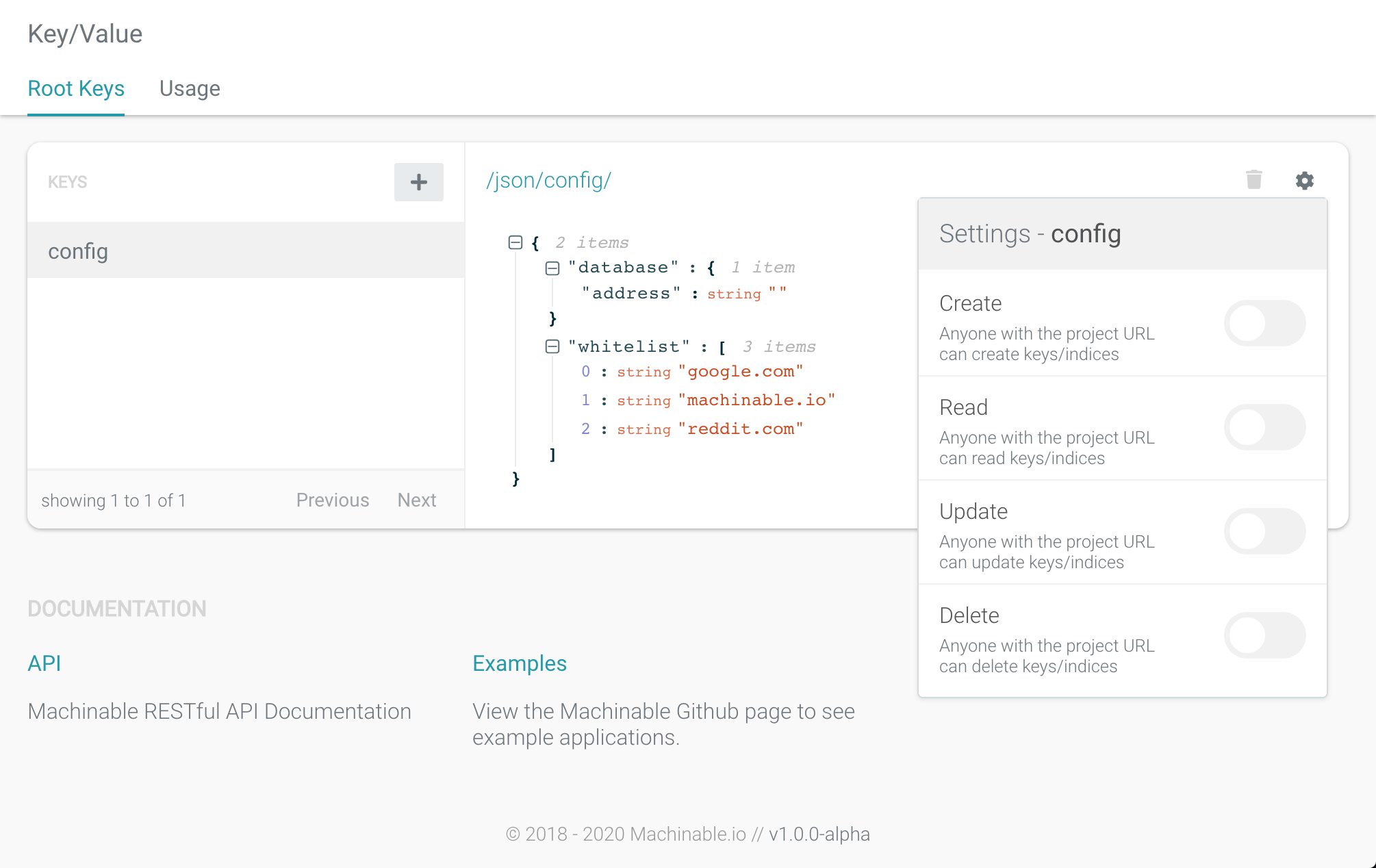

By default, access to Root Keys is open to anyone with the project URL. To restrict access, select the gear icon in the top right corner of the Root Key JSON window and change the access settings.

Create

Authentication is required to create new objects.

Read

Anyone with the project URL can read objects.

Update

Authentication is required to update objects.

Delete

Authentication is required to delete objects.

Usage

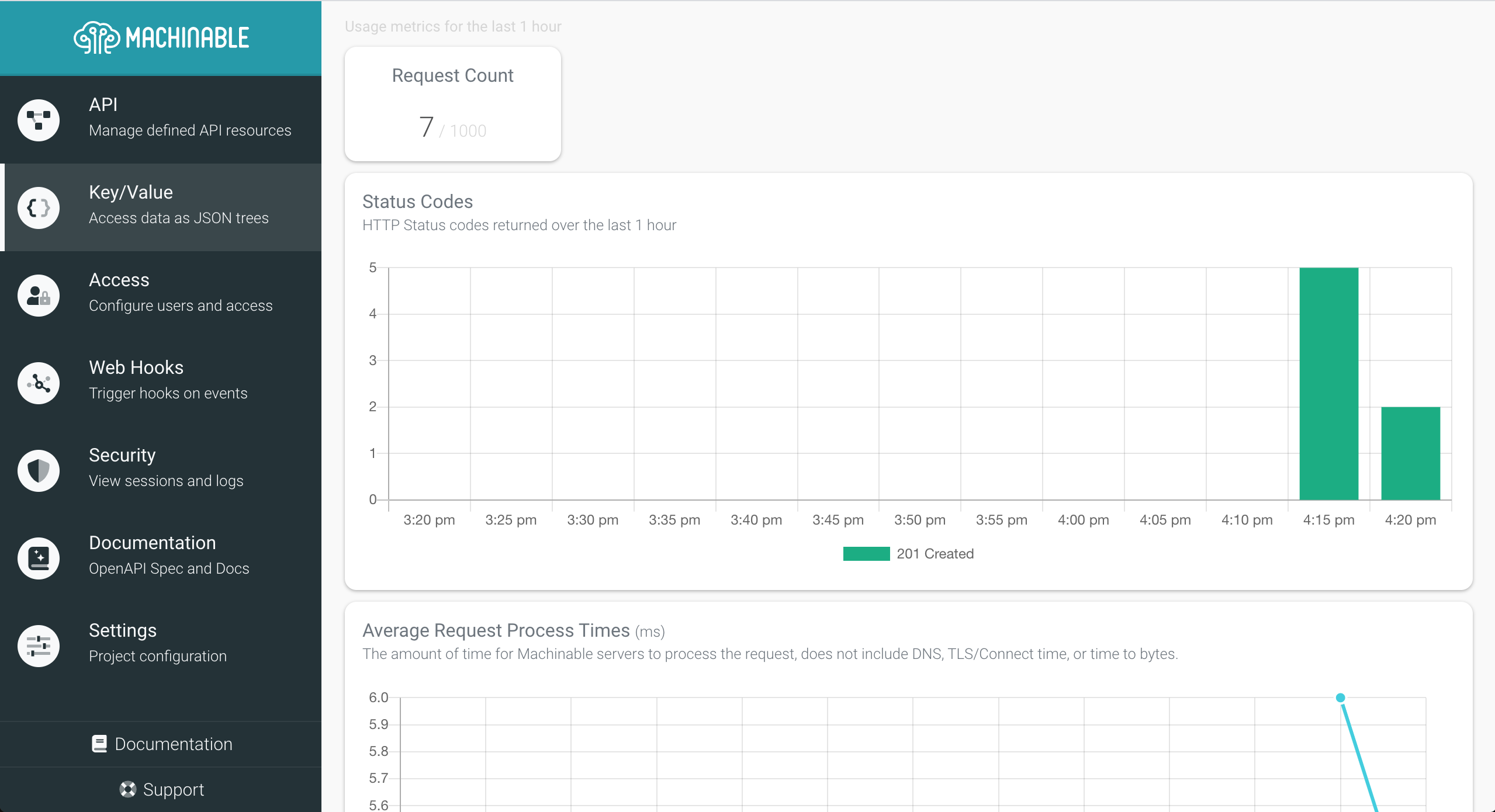

Usage metrics are gathered for any requests made to Root Keys. You can view your project's usage metrics by navigating to Key/Value > Usage.

Usage reports the following metrics:

Requests

This is the count of HTTP Requests made to all of the Key/Value JSON in the last 1 hour.

Status Codes

This visualizes the count of status codes of each request to Key/Value JSON, summarized every 5 minutes, for the past 1 hour.

Average Response Times

This visualizes the response times of each request to Key/Value JSON, averaged every 5 minutes, for the past 1 hour.

Sample Queries

Note

The sample queries use jq to process and format response JSON.

Create data for root key

$ curl -s -X PUT -d '{ "7f98c91d5-e7be-4828-aa42-6866d134af6c": { "age": 32, "friends": [ "Mary", "John", "Ron" ], "job": { "title": "Clerk" }, "name": "Bob" }, "a973933c-a72c-41db-96c9-1369d196052b": { "age": 57, "friends": [ "Lisa" ], "job": { "title": "Engineer" }, "name": "Sam" } }' https://misc.machinable.io/json/people/ | jq "."
{
  "7f98c91d5-e7be-4828-aa42-6866d134af6c": {
    "age": 32,
    "friends": [
      "Mary",
      "John",
      "Ron"
    ],
    "job": {
      "title": "Clerk"
    },
    "name": "Bob"
  },
  "a973933c-a72c-41db-96c9-1369d196052b": {
    "age": 57,
    "friends": [
      "Lisa"
    ],
    "job": {
      "title": "Engineer"
    },
    "name": "Sam"
  }
}

Retrieve individual keys

$ curl -s https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c | jq "."
{
  "age": 32,
  "friends": [
    "Mary",
    "John",
    "Ron"
  ],
  "job": {
    "title": "Clerk"
  },
  "name": "Bob"
}

Retrieve by index of array

$ curl -s https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c/friends/1 | jq "."
"John"

Create new key

$ curl -s -X POST -d '4' https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c/job/years | jq "."
4

$ curl -s https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c/job | jq "."
{
  "title": "Clerk",
  "years": 4
}

Update key

$ curl -s -X PUT -d '{"title": "Manager", "years": "1"}' https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c/job | jq "."
{
  "title": "Manager",
  "years": "1"
}

Delete key

$  curl -s -X DELETE https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c/job | jq "."{}

$  curl -s https://misc.machinable.io/json/people/7f98c91d5-e7be-4828-aa42-6866d134af6c | jq "."
{
  "age": 32,
  "friends": [
    "Mary",
    "John",
    "Ron"
  ],
  "name": "Bob"
}
